UGSMT502GC

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, global shutter
Gigabit network interface with locking seat, effective transmission distance of 100 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

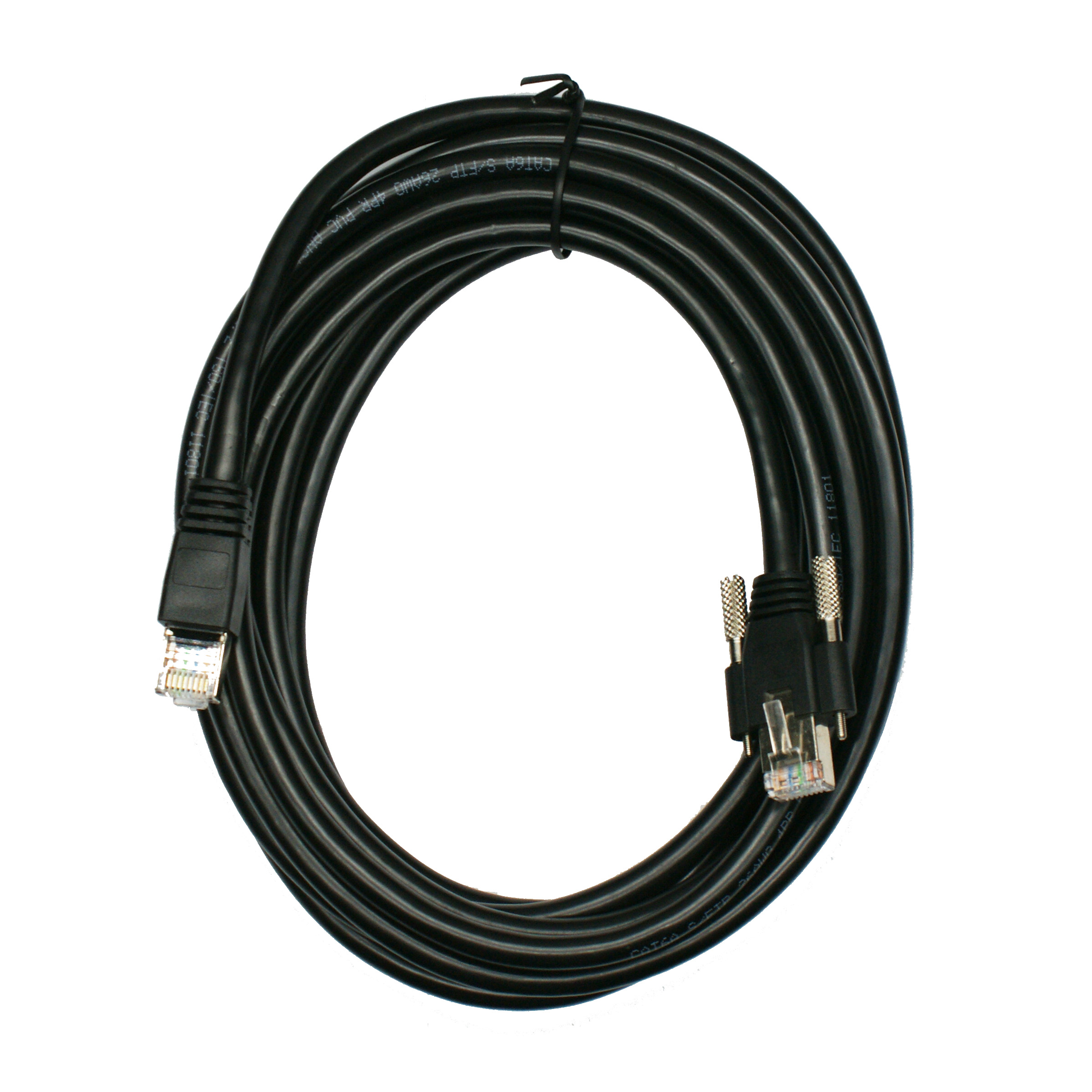

Gigabit network cable: 3M / 5M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

pixelGain (multiple)Shutter time

Programmable function

continuous/soft trigger/hard triggerOperating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃Halcon, OpenCV, VisionPro, LabView, Matlab, etc.

Model	Product model	UGSMT502GC
Model	Product name	5 million 1/1.8>r style="height: 24px;">	Performance	5 million
CMOS
Sensor model	Snappy5M
Black-white/color	Color
Shutter type	Global shutter
Resolution	2560x1936
maximum fps 0px 1px 0px; border-style: none solid solid solid solid none; border-color: rgb(238, 236, 225); background-color: transparent;">22fps
Target surface size	1/1.8"
Cell size	2.8µmx2.8µm
Sign-to-noise ratio	40dB
8 times
Dynamic range	66dB
0.065-3000ms
7400mV/lux-s
pixelbit depth	8/10/12bit
pixel format	Mono 8/10 Bayer 8/10
Binning	Support 1×1, 1×2, 2×1, 2×2
fps font-size: 14px;">128M Bytes
Function	Image size (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	Manual white balance/automatic white balance/support white balance locale settings
Electrical characteristics	Data interface	GigE @1Gbps
	Transmissiondistance	100m
	digital I/O	6-pin Hirose connector provides power supply and I/O: 1 optocouple isolation input (Line0), 1 optocouple isolation output (Line1)
	Power supply	12 VDC, supports PoE power supply
	Typical power consumption	＜3.0W @ 12VDC
Design	Appearance dimensions	29mmx29mmx43mm (excluding lens holder and interface)
Lens interface	C-mount /CS-mount
IP protection level	IP30
weight	66g
temperature
Humidity	20% ~ 80%RH Non-condensation
Software support	Driver	Support DirectShow components, Twain components, Halcon-specific components, OCX components
	Software support
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
	System support	Windows, Linux, IOS, Android
	Protocol/Standard	GigE Vision,GenICam

UGSMT502GC.pdf
