U3SMT501GC

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, global shutter Shutter
USB3.0 interface with locking buckle, plug and play without power supply

Supports Windows, Android, Linux, and MacOS
The camera comes with frame cache, supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

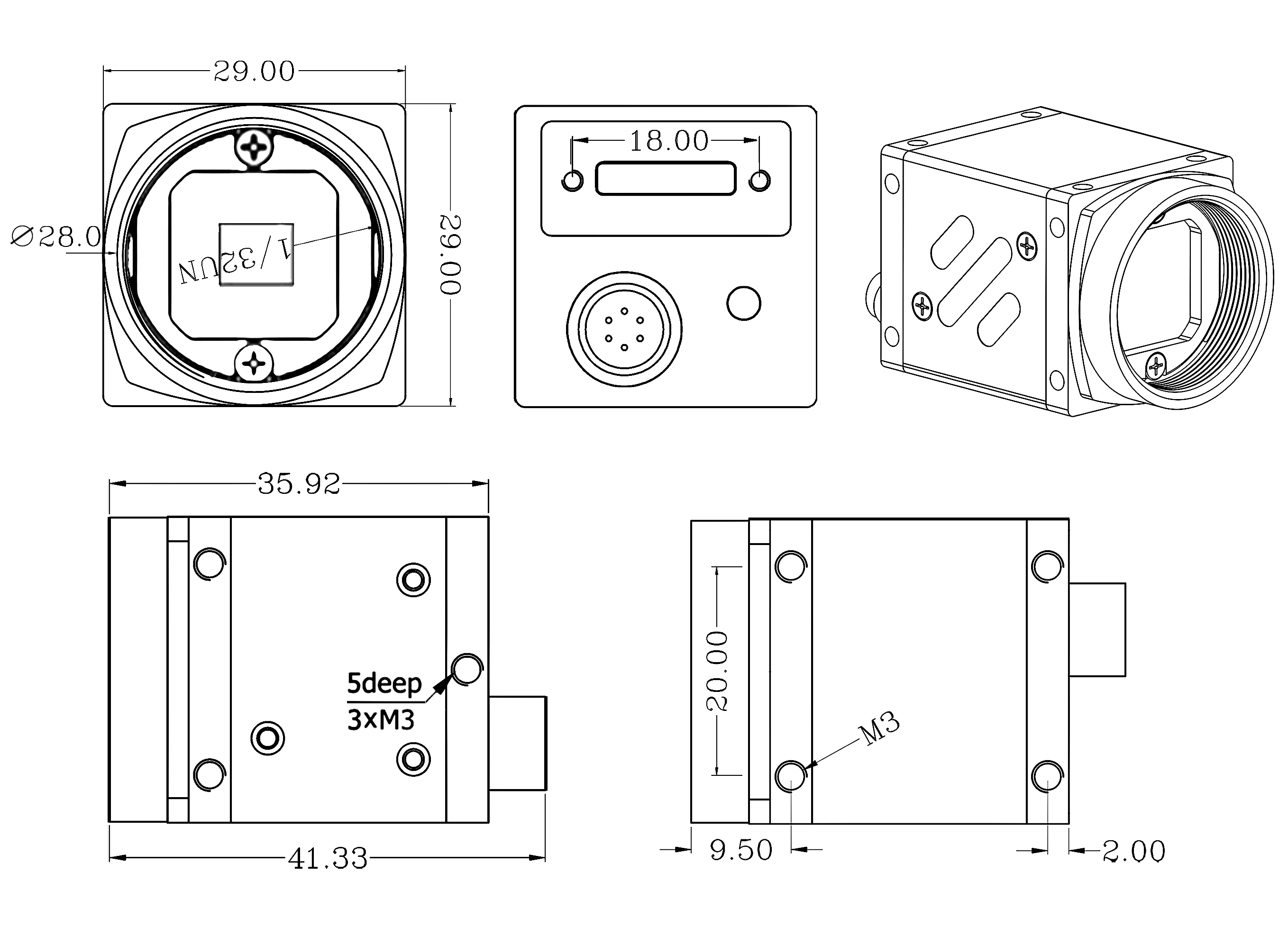

机械规格 MECHANICAL SPECIFICATION

Related accessoriesACCESSORY

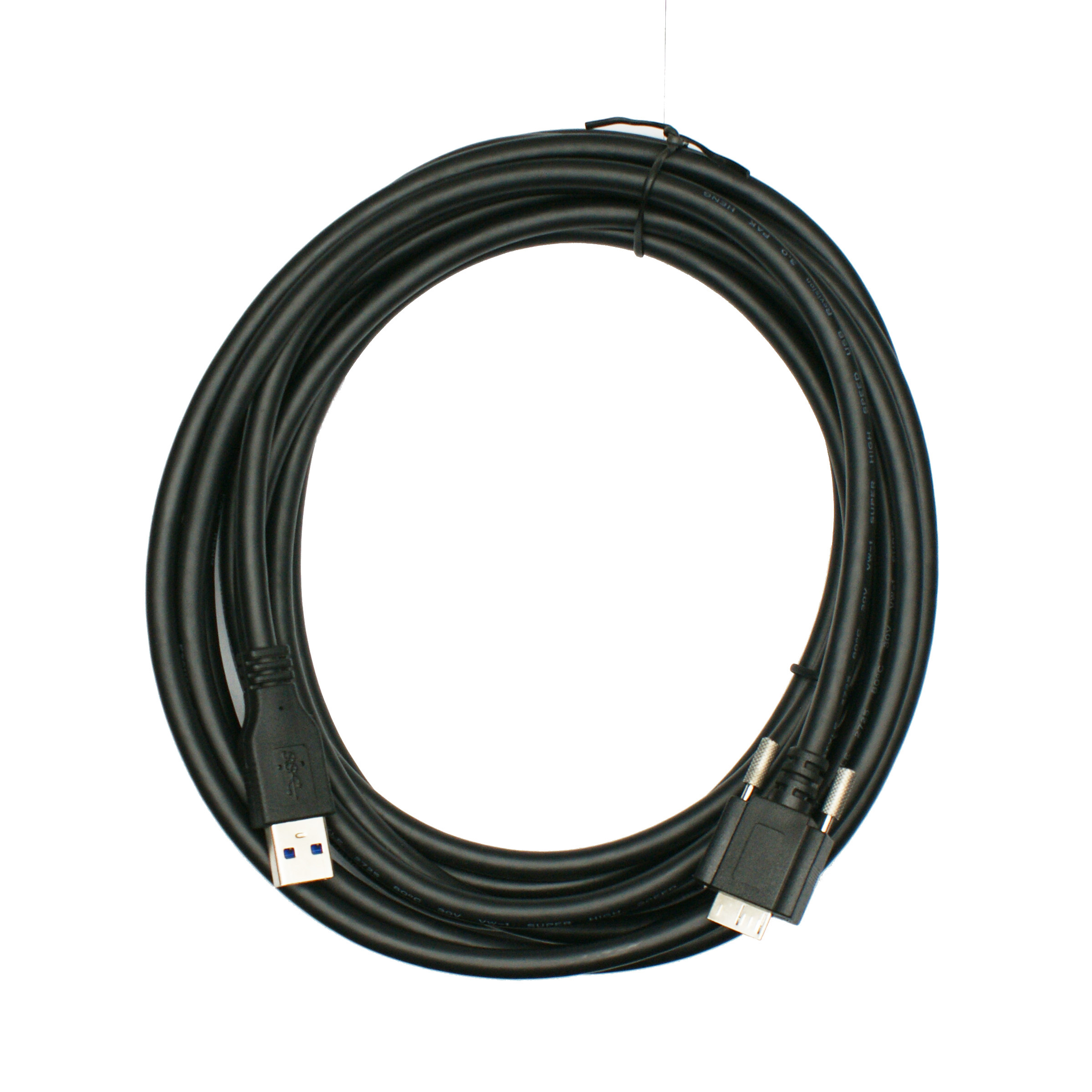

USB3.0 data cable: 1.5M/3M	6Pin HRS aviation head trigger line: 2M

Gain (multiple)Shutter timepixel formatProgrammable functioncontinuous/soft trigger/hard triggerDigital I/O29mmx29mmx29mm (excluding lens holder and interface)TemperatureSupport DirectShow components, Twain components, Halcon-specific components, OCX components

Model	Product model	U3SMT501GC
Model	Product name	5 million1 USB3.0 industrial camera
pixel	pixel	5 million
CMOS
Sensor model	Python5000
Python5000
Black-white/color	Color
Shutter type	Global shutter
Resolution	2592x2048
maximum fps 0px 1px 0px; border-style: none solid solid none; border-color: rgb(238, 236, 225); background-color: transparent;">40fps
Target surface size	1"
Cell size	4.0µmx4.0µm
Sign-to-noise ratio	39.5 dB
8 times
Dynamic range	57.5dB
0.065-3000ms
Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scanstyle="border-width: 0px;">
Pixel bit depth	8/10/12bit
Mono 8/10 Bayer 8/10
Binning	Support 1×1, 1×2, 2×1, 2×2
fps cache	128M Bytes
Function	Imagesize (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	Manual white balance/automatic white balance/support white balance locale setting
Electrical characteristics	Data interface	USB3.0 @ 5Gbps
			Transmission distance	5m
	Digital I/O	I/O: 1 Optocoupler isolation input (Line0), 2Optocoupler isolation output (Line1)
	Power supply	5 VDC, USB3.0 interface power supply
	Typical power consumption	<3.5W @ 5 VDC (USBpowered)
Design	Appearance dimensions
	Lens interface	C-mount / CS-mount
	IP protection level	IP30
	weight	55g
	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
	Humidity	20%~ 80%RH Non-condensation
Software support	Driver
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab,etc.
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python and provide corresponding development routines
	System support	Windows, Linux, IOS, Android
	Protocol/Standard	USB3 Vision, GenlCam

U3SMT501GC.pdf
