T3SMT130M

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, rolling shutter
USB3.0 interface with locking seat, effective transmission distance of 5 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

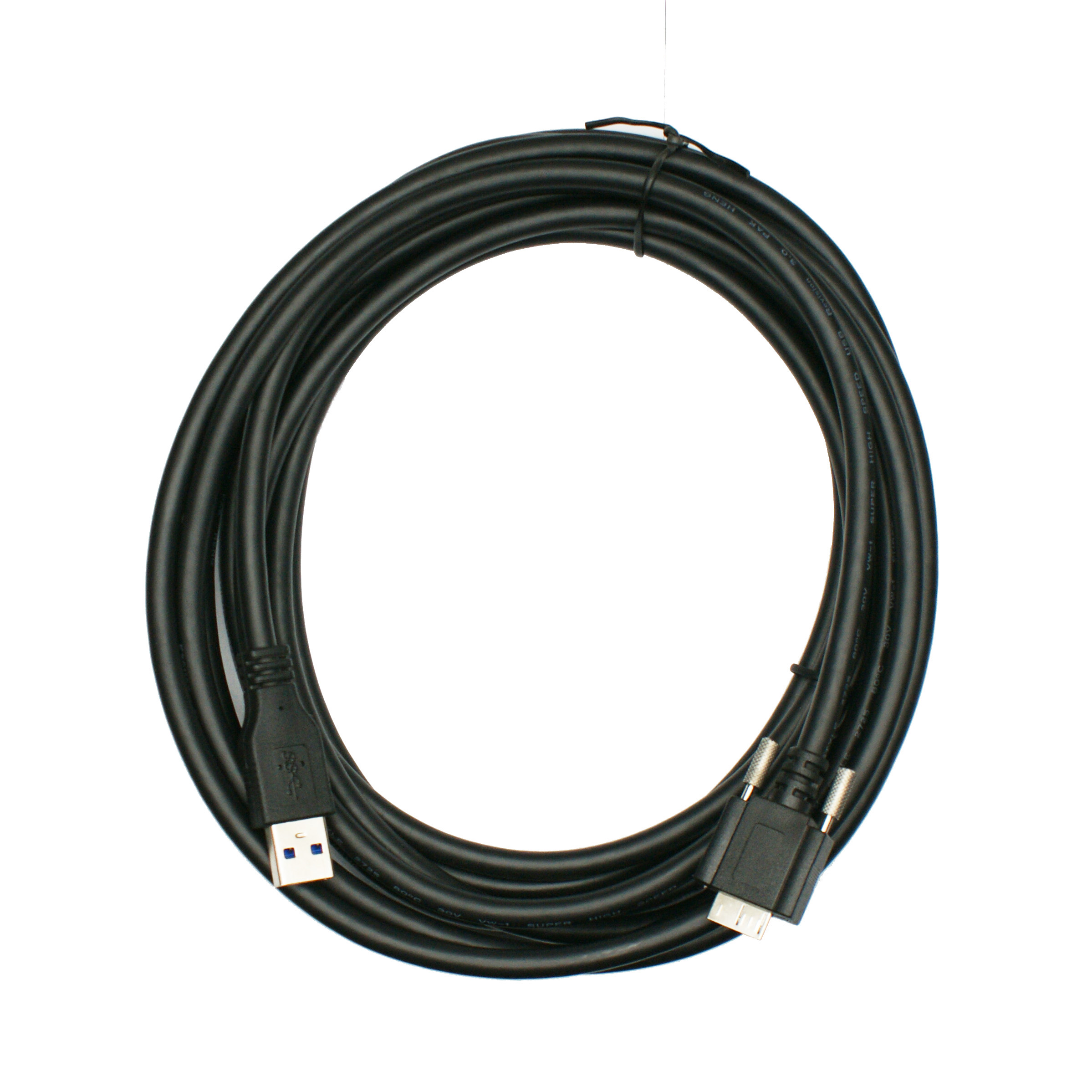

USB3.0 data cable: 1.5M/3M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

Gain (multiple)Shutter timeProgrammable functioncontinuous/soft trigger/hard triggerTemperatureSupport DirectShow components, Twain components, Halcon-specific components, OCX components

Model	Product model	T3SMT130M
Model	Product name	1.3 million 1/2" USB3.0 industrial camera
pixel	pixel	1.3 million
CMOS
Sensor model	MT9M001
Black-white/color	Mono
Shutter type	Scroll shutter
Resolution	1280Hx1024V
maximum fps rate	30fps
Target surface size	1/2"
Cell size	5.2µmx5.2µm
Sign-to-noise ratio	45dB
15 times
Dynamic range	68.2dB
0.0333-30000ms
2.1V/lux-sec
pixel bit depth	8/10bit
pixel format	Mono 8/10/12
Binning	Support 1×1,1×2,2×1,2×2
fps cache	128M Bytes
Function	Imagesize (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	White-free balance operation
Electrical characteristics	Data interface	USB3.0 @ 5Gbps
Transmission distance	5m
DigitalI/O	I/O: 1 Optocoupler isolation input (Line0), 2Optocoupler isolation output(Line1)
Power supply	5 VDC, USB3.0 interface power supply
Typical power consumption	<3.5W @ 5 VDC (USB powered)
Design	Appearance dimensions	29mmx29mmx29mm (excluding lens holder and interface)
Lensinterface	C-mount / CS-mount
IP protection level	IP30
weight	55g
Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
Humidity	20%~ 80%RH Non-condensation
Software support	Driver
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab, etc.
	Developmentlanguage	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python and provide correspondingdevelopment routines
	System support	Windows, Linux, IOS, Android
	Protocol/Standard	USB3 Vision, GenlCam
