| Product Features CHARACTERISTIC |
Mechanical specifications MECHANICALSPECIFICATION |
|
| Related accessoriesACCESSORY | ||

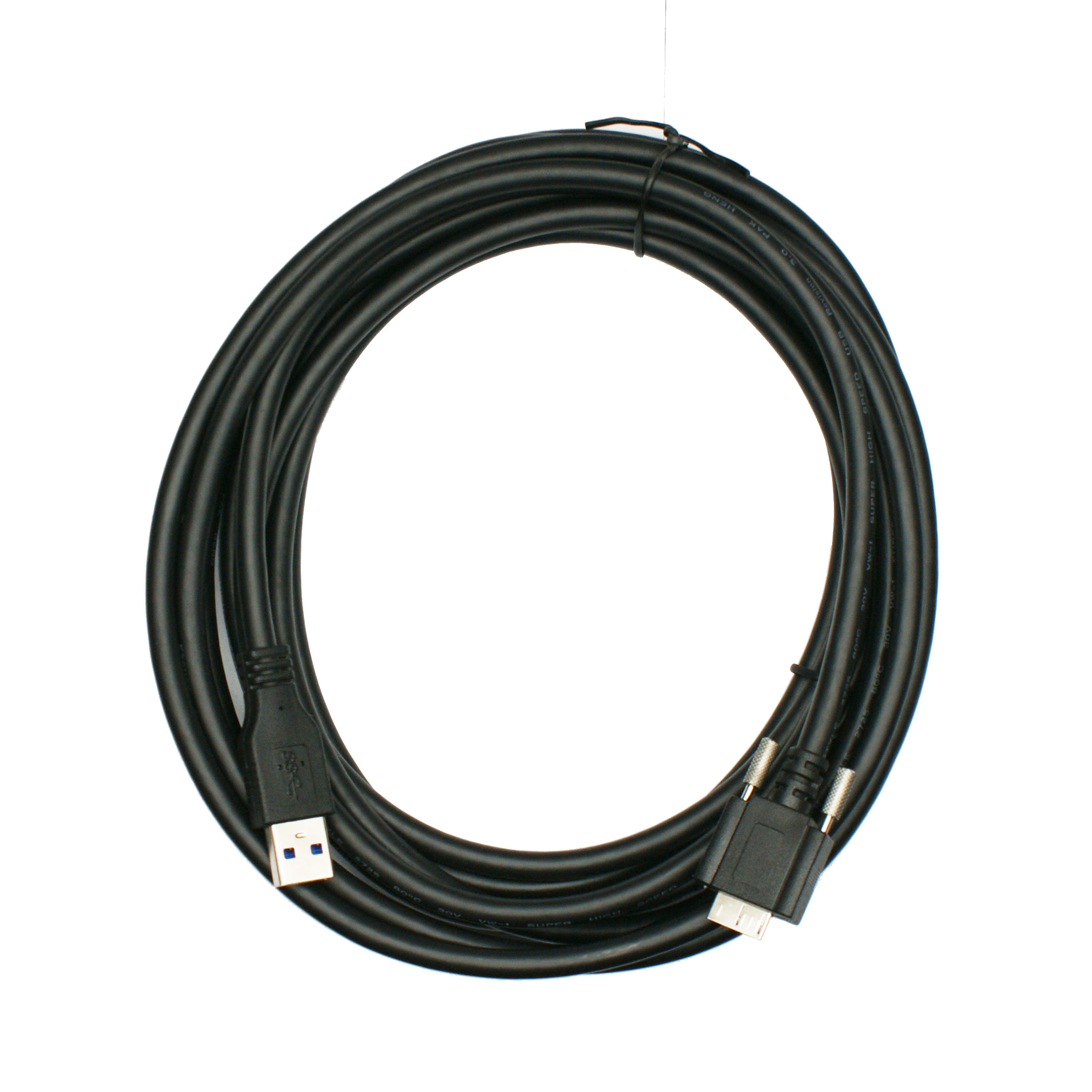

USB cable: 1.5M/3M | 6Pin HRS aviation head trigger line: 2M | 12 VDC Power supply: 2.5M |
|
|
|
| Model | Product model | T3SMT36GM |
| pixel | ||
| Performance | Product name | 360,0001/3" USB3.090 corner industrial camera |
| Sensor model | MT9V024 | |
| Black-white/color | ||
| Shutter type | Global shutter | |
| Resolution | 752Hx480V(360,000) | |
| maximum fps | 108fps | |
| Target surface size | 1/3" CMOS | |
| Cell size | ||
| Sign-to-noise ratio | 45dB | |
| 4x | ||
| Dynamic range | 55dB | |
| 0.0333-30000ms | ||
| 4.8V/lux-sec(550nm) | pixel bit depth | 8/10bit |
| pixel format | Mono 8/10/12 | |
| Binning | Support 1×1,1×2,2×1,2×2 | fps cache | 128M |
| Function | Image size (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps Rate control | |
| Shutter control | Automatic/manual/support Shutter area settings | |
| User parameter area | 2 32-byte custom serial numbers, maximum 1024-byte data area | |
| Collection method | Continuous/soft trigger/hard trigger | |
| White balance | White-free balance operation | |
| Data interface | USB3.0 @ 5Gbps | |
| Transmission distance | ||
| DigitalI/O | I/O: 1 Optocoupler isolation input (Line0), 2Optocoupler isolation output(Line1) | |
| Power supply | 5 VDC, USB3.0 interface power supply | |
| Typical power consumption | <3.5W @ 5 VDC (USB powered) | |
| Design | Appearance dimensions | 29mmx29mmx57mm |
| Lens interface | C-mount | |
| IP protection level | IP30 | |
| weight | 90g | |
| Software support | Temperature | Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃ |
| Humidity | 20% ~ 80%RH Non-condensation | Driver | Support DirectShow components, Twain components, Halcon-specific components, OCX components |
| Compatible with Halcon, OpenCV, LabView, Matlab | ||
| Support development language | ||
| System support | WinXP, Vista, Win7, Win8, Win10, Linux, Android | |
| Protocol/Standard | USB3 Vision, GenlCam |
