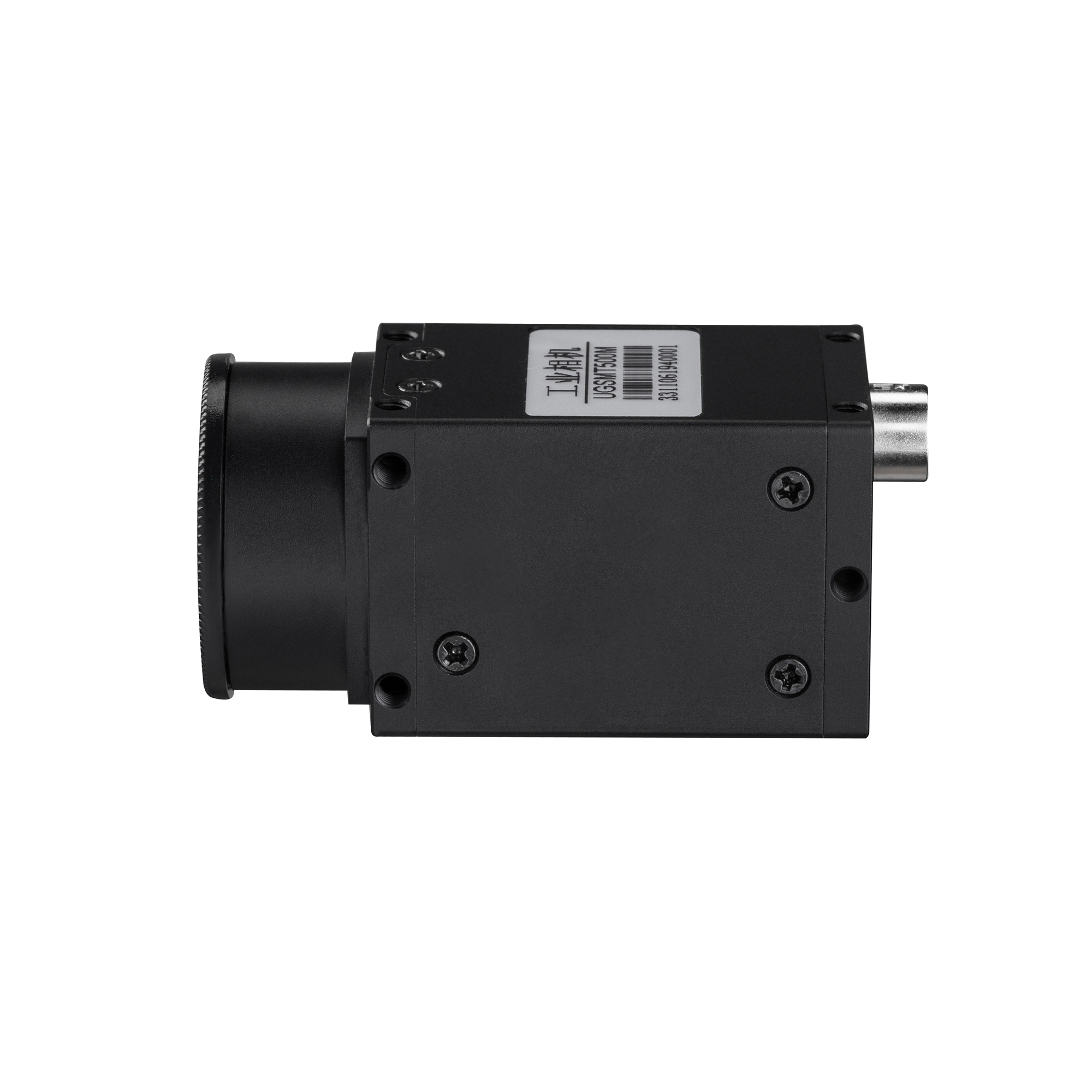

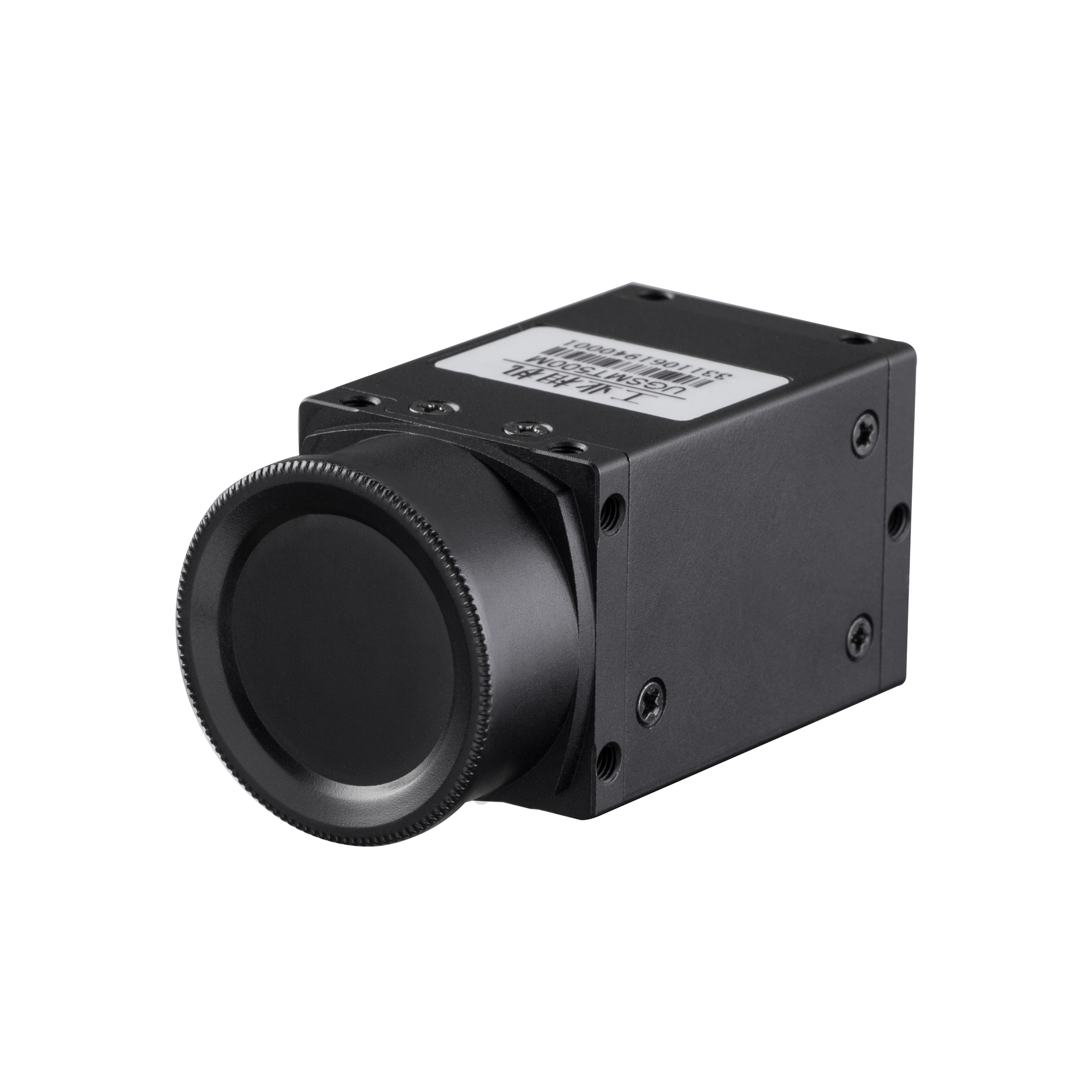

TGSMT2000C

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, rolling shutter
Gigabit network interface with locking seat, effective transmission distance of 100 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

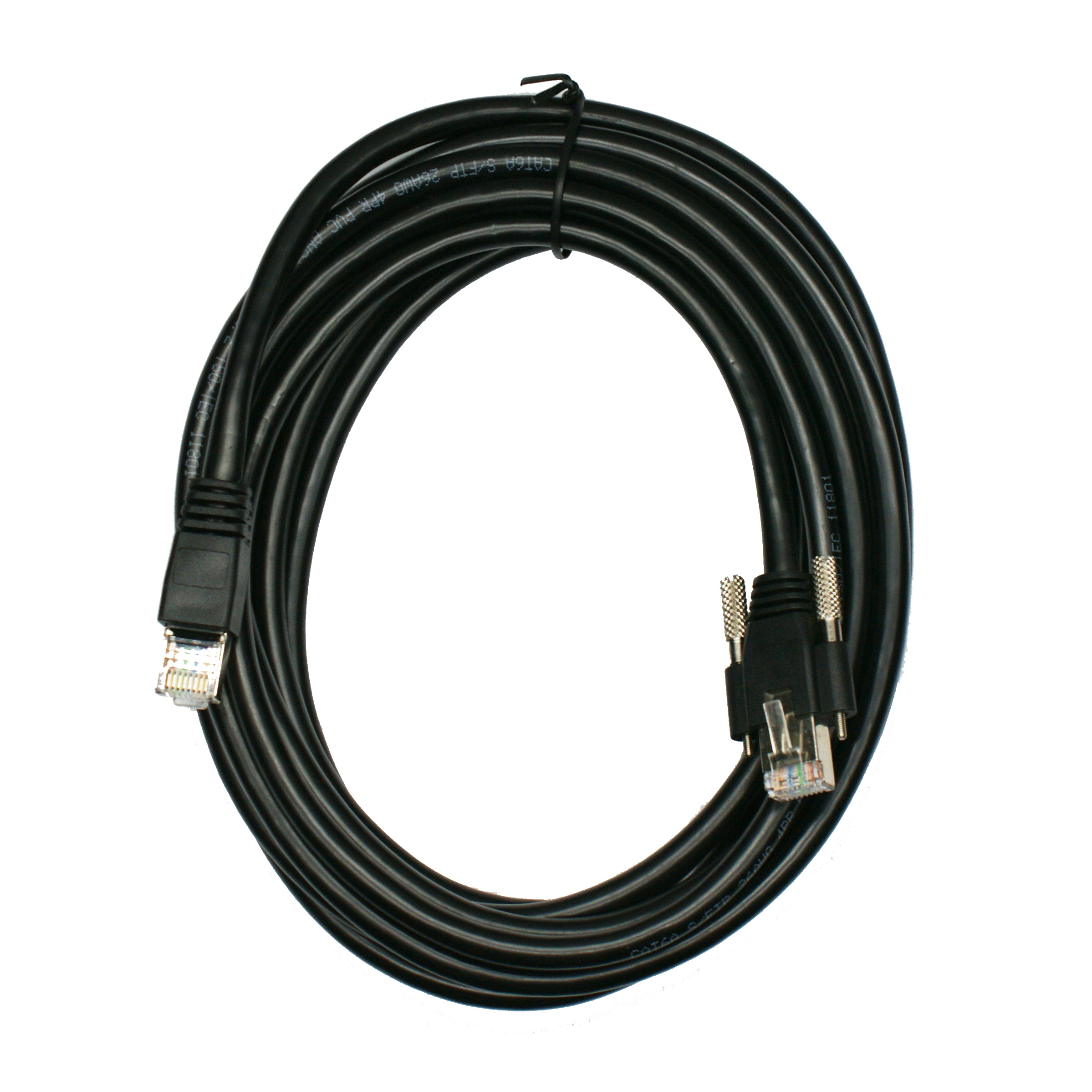

Gigabit network cable: 3M / 5M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

TGSMT2000CGain (multiple)Shutter timeBinningProgrammable functioncontinuous/soft trigger/hard triggerPower supplySystem supportProtocol/Standard

Model	TGSMT2000C
Model	Product name	20 million 1" Gigabit network industrial camera
Performance	pixel	20 million
CMOS
Sensor model	IMX183
Black-white/color	Color
Shutter type	Scroll shutter
Resolution	5488Hx3672V
maximum fps 5.9fps
Target surface size	1"
Cell size	2.4µmx2.4µm
Sign-to-noise ratio	41.5dB
20 times
Dynamic range	65.5dB
0.052-30000ms
photosensitivity	0.388 V/lux-sec(550nm)
pixel bit depth	8/10bit
pixel format	Monofont-size: 14px;">Binning
Support 1×1,1×2,2×1,2×2
fps font-size: 14px;">128M Bytes
Function	Image size (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	Manual white balance/automatic white balance/support white balance locale settings
	Data interface	GigE @ 1Gbps
	Transmissiondistance	100m
	digital I/O	6-pin Hirose connector provides power supply and I/O: 1 optocouple isolation input (Line0), 1 optocouple isolation output (Line1)
	12 VDC, supports PoE power supply
	Typical power consumption	＜3.0W @ 12VDC
Appearance dimensions	Appearance dimensions	29mmx29mmx43mm (excluding lens holder and interface)
look interface	C-mount / CS-mount
IP protection level	IP30
Weight	66g
temperature	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
Humidity	20% ~ 80%RH Non-condensation
Software support	Driver	Support DirectShow components, Twain components, Halcon-specific components, OCX components
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab,etc.
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
	Windows, Linux, IOS, Android
	GigE Vision, GenICam
